Multi Echo 2.5m-1000m 3D Laser Mapping Equipment HS1000i 3D Building Scanning Equipment

Wuhan Hi-Cloud Technology Co.,Ltd

Multi Echo 2.5m-1000m 3D Laser Mapping Equipment HS1000i 3D Building Scanning Equipment

  • 1
  • 2

Brand Name : Hi-Cloud

Model Number : HS1000i high frequency 3D laser scanner

Certification : ISO, others upon the requests

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 sets/month

Delivery Time : 7 working days

Packaging Details : Transport Case

Application : Coal inventory system

Max. Range : 1000m

Min. Range : 2.5m

Ranging Mode : Pulse

Range Accuracy : 5mm@40m

PRR : Max. 500kHz

Contact Now

Multi-echo 2.5m to 1000m long range 5mm@40m accuracy HS1000i high frequency 3D laser scanner for coal inventory system

The coal management of thermal power plant is an important part of production management, which has a direct impact on the economic indicators of the power plant. Therefore, it is urgent to quickly and accurately measure the coal storage and daily consumption of the coal yard, so as to facilitate the cost accounting, economic benefit evaluation and scientific management of the power plant. The measurement of coal stockpile reserves (coal storage) is an important measurement work for thermal power plants, coal mines and other units. It is mainly to measure the volume of coal stockpile. The traditional measurement method is to shape the coal stockpile with bulldozer, artificially push it into an approximate trapezoid, and then measure it manually, or calculate it by making coal stockpile profile. This method requires that the bottom surface is flat, put more manpower and material resources. The measurement error is large and the efficiency is low.

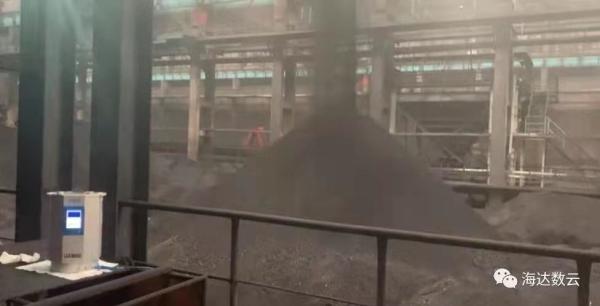

Hi-Cloud HS1000i 3D laser scanning technology solution, not attached to any equipment, does not require the flatness of the bottom of the coal storage yard and regular shape. Through short-time intensive high-precision laser scanning, it establishes a high-resolution real size 3D TIN model of the whole coal pile, and directly calculates and outputs a detailed volume report. Due to the extremely short time-consuming of counting once, it can realize daily scanning and even shorter time interval detection; calculate the 3D TIN model at the same time every day to output the volume change (daily consumption) report. It has the characteristics of automatic operation, time-saving, fast, accurate and relatively economic, which is very beneficial to the lean management in the power plant.

Advantages:

1. Measurement range from 2.5m to 1000m

2. High precision 5mm@40m, high frequency max. 500kHz

3. Synchronous signal output, external camera sensor can be connected

4. Multiple intelligent registeration methods are optional

5. Fully independent intellectual property rights, upgrade is guaranteed

6. 240G(SSD) data storage with GigE/USB2.0 data transmission methods

Parameters:

Type

HS1000i
Ranging Mode Pulse
Laser Class Class 1 (eye safe)
Laser Beam Divergence 0.35mrad
Echo Mode Full waveform, multi-echo technology
Max. Range 1000m@90%,100kHz
Min.Range 2.5m
Range Accuracy 5mm@40m
Laser Pulse Repetition Rate PRR

Max. 500kHz

Scan FoV vertical 100°(-40°~+60°)
horizontal 360°
Angular Measurement Resolution vertical 0.001°
horizontal 0.001°
Scan Speed vertical 3-150scans/s
horizontal max.36°/s
Dual-axis tilt sensor Range ±5°
Resolution 0.001°
Control Mode Support mobile terminal APP and remote control
Communicate Interface GigE/USB2.0/WLAN/Camera Trigger/GPS Synchronization,etc.
Operation Temperature -20℃~+60℃
Storage Temperature -40℃~+85℃
Humidity non condensing
Protection Class IP64
Main Dimensions

φ188mm×318mm

Weight ca.10.5Kg
