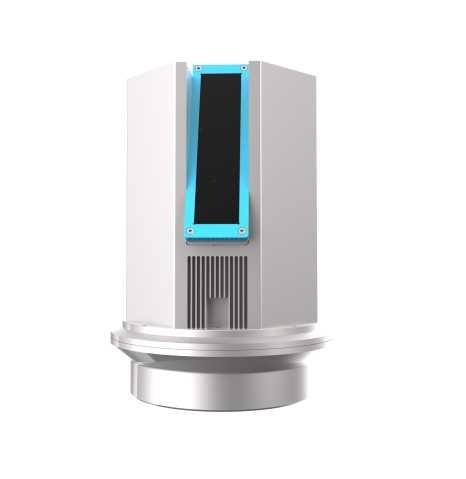

1.5m-300m Terrestrial Laser Scanners HS300X IP65 Terrestrial Laser Scanning Equipment

Wuhan Hi-Cloud Technology Co.,Ltd

1.5m-300m Terrestrial Laser Scanners HS300X IP65 Terrestrial Laser Scanning Equipment

  • 1
  • 2

Brand Name : Hi-Cloud

Model Number : HS300X Terrestrial Laser Scanner

Certification : ISO, others upon the requests

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 sets/month

Delivery Time : 7 working days

Packaging Details : Transport Case

Range : 1.5m to 300m

Range Accuracy : 5mm@40m

Laser Class : Class I

PRR : 500kHz

Angular Resolution : 0.002°

Operation Temperature : -10℃~65℃

Contact Now

1.5m to 300m range 5mm@40m high accuracy Terrestrial Laser Scanner HS300X for industrial application with IP65

3D laser scanning technology, also known as the real scene replication technology, is a technical revolution in the field of surveying and mapping after GPS technology. It breaks through the traditional single point measurement method and has the unique advantages of high efficiency and high precision. 3D laser scanning technology can provide 3D point cloud data of scanned object surface, so it can be used to obtain high precision and high resolution digital terrain model. By means of high-speed laser scanning measurement, it can quickly obtain the 3D coordinate data of the measured object surface with large area and high resolution. It can quickly collect a large number of spatial point information, which provides a new technical means for the rapid establishment of 3D image model of objects.

HS300X industrial high-precision 3D terrestrial laser scanner is dustproof, waterproof and shockproof. It is equipped with industrial integrated secondary development package (equipment control SDK, point cloud processing SDK) and laser measurement algorithm package, which can realize remote automatic control, meet the needs of basic registration, coordinate conversion, volume calculation, etc. The scanner can also be customized according to the actual situation of the project, provides the industrial control whole process solution of laser measurement hardware and software + PLC, and provides regular calibration and other after-sales services.

HS300X industrial high-precision 3D terrestrial laser scanner is widely used in steel factory, metallurgy, port, wharf, mine, tunnel, electric power and other industries.

Parameters of HS300X

Ranging Mode Pulse, Laser Wavelength: 1545nm
Laser Class
Measurement Range 1.5m ~ 300m
Range Accuracy 5mm@40m
PRR 500kHz
FoV vertical 100°(-40°~+60°)
horizontal 360°
Angular Resolution vertical 0.002°
horizontal 0.002°
Scan Speed horizontal Max. 30r/s
vertical Max. 150lines/s
Duo Axis Compensation Range +/- 5°
Resolution 0.001°
Data Transmission Ethernet
Communication Interface Ethernet/1 x USB/GNSS, connecting external cameras and other sensors, such as GPS, odometer, etc
Operation Temperature -10℃~65℃
Storage Temperature -20℃~65℃
Illumination Condition Can be operated in strong sunlight or darkness
Humidity Non condensing
Product Waterproof and dustproof

Advantages of HS300X

1. High accuracy: up to 5mm@40m

2. High protection class: IP65

3. Remote control

4. Strong stability

5. Strong expansibility

Application fields of HS300X

  • Application fields: Iron and steel, metallurgy, port, wharf, mine, tunnel, power industry, etc
  • Development direction:Ship unloader automation, machine vision automation, shovel automation, coal inventory system, volume measurement, digital yard, etc

Application of Thickness Measurement of Converter Brasque

1.5m-300m Terrestrial Laser Scanners HS300X IP65 Terrestrial Laser Scanning Equipment

Application of Gravel and Coal Supervision System

1.5m-300m Terrestrial Laser Scanners HS300X IP65 Terrestrial Laser Scanning Equipment

Application of the Measurement of the Converter Target Balls

1.5m-300m Terrestrial Laser Scanners HS300X IP65 Terrestrial Laser Scanning Equipment
