Multi Platform Airborne LiDAR Survey ARS-1000 4.5kg LiDAR Topographic Survey

Wuhan Hi-Cloud Technology Co.,Ltd

Multi Platform Airborne LiDAR Survey ARS-1000 4.5kg LiDAR Topographic Survey

  • 1
  • 2

Brand Name : Hi-Cloud

Model Number : ARS1000 Airborne LiDAR Survey

Certification : ISO, others upon the requests

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5 sets/month

Delivery Time : 10 working days

Packaging Details : Transport Case

Maximum Range : 920m@60%

Minimum Range : 5m

Maximum number of received echoes : 4~15

Range Accuracy : 15mm @150m

Laser Class : Class1 (eye safe)

Scan Frequency : 10~200 scans/s

FoV(selectable) : 0~330° (60°~90°airborne mode)

Camera Resolution : ≥42.4MP

Contact Now

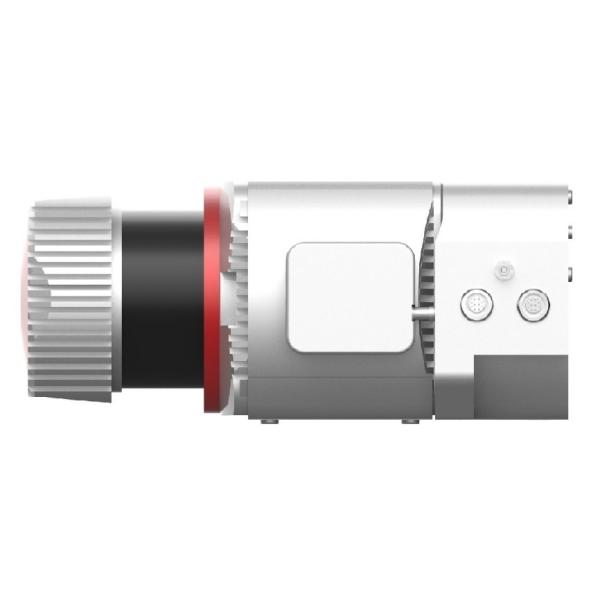

Multi platform highly integrated airborne LiDAR survey ARS-1000 with the range accuracy of 15mm@150m

ARS-1000 airborne LiDAR survey is developed and built by Hi-Cloud based on a Riegl LiDAR. It integrates high-precision laser, high-definition camera, GPS, MEMS inertial navigation, storage control unit and other modules. Supported by time synchronization technology of independent intellectual property and integrated multi-sensor integration technology, it synchronously obtains 3D laser point cloud, POS data and image data.

It supports base station free operation mode, through the equipped data processing and application software, quickly generate DSM, DEM, DOM, DLG. The system has the advantages of light weight, convenient transportation and high efficiency of results processing.

Application Fields

Emergency mapping / topographic mapping / power line inspection / highway survey / coastal reef survey / excavation and filling volume calculation / archaeological survey and mapping ...

System Advantages

  • Integration: the system adopts an integrated hardware platform architecture, which integrates the 3D laser scanning sensor, inertial navigation system and GPS into the platform architecture, eliminating the steps of assembling each sensor on site. The smaller volume and weight make the equipment easy to carry and install.
  • Strong stability: the embedded integrated platform makes the system more powerful and stable, and improves the system accuracy.
  • Real-time monitoring: the system is equipped with a long-distance and high-speed data transmission radio station. With the wireless control mode of the mobile terminal, the operation state of the system can be monitored remotely, so that the operators can master the operation situation at any time.
  • Multi platform: the system can adapt to various carrier platforms, such as multi rotor UAV and VTOL fixed wing UAV. In addition, it also adapts to various operation modes such as vehicle mounted and backpack. The adaptation of multi platform mode meets the needs of users to work in a variety of scenarios and is widely used in various fields.
  • Long range: Under the condition of 60% reflectivity of ground objects, the equipment can have a maximum measurement range of 920m. Taking the airborne platform as an example, the higher the ranging, the higher the UAV can climb, the larger the measurement area, and the more point cloud data will be collected.

System Parameters

Items Indicator Parameter
System Performance Absolute Accuracy

horizontal <5cm

vertical <5cm

Weight 4.5kg
Storage 1TB SSD
Input Voltage 20~30V
Power Consumption <75W
Operation Temperature -10℃~+40℃
Storage Environment -20℃~+50℃
Humidity < 85%
Laser Class Class1
(eye safe)
Laser Scanner Maximum Measurement Range 920m @60%
Minimum Measurement Range 5m
Range Accuracy 15mm @150m
Repetition Accuracy 10mm @150m
Max. Effective Point Frequency 500000 points/s
Laser Gear for Adjustment 6 levels
Maximum number of received echoes 4~15
FoV(selectable) 0~330°
60°~90°airborne mode
Scan Frequency(selectable) 10~200 scans/s
Angular Resolution 0.001°
POS System Position Accuracy(post-processing) Horizontal 0.01m
Elevation 0.02m
Orientation Accuracy(post-processing) Heading 0.010°
Pitch/Roll 0.005°
Camera System Camera Resolution ≥42.4MP
Camera Weight <500g

Application Project

Highway survey project

The terrain of the survey area is complex, the vegetation is lush and the altitude difference is large. Two highways need to be measured, with a total length of about 60km.

Be responsible for the vertical and horizontal section measurement of 100 meters (200 meters of bandwidth) on both sides of the middle line of the road according to the relevant standards, technical specifications and procedures, and the output results shall be in accordance with the 1:500 mapping requirements.

Due to the high mountains, rough roads, lush vegetation and dense traffic on the highway, the task of field survey is dangerous.

According to the specific situation of the project, ARS-1000 system is adopted to collect flight data along the road according to the relative altitude of 200m.

Multi Platform Airborne LiDAR Survey ARS-1000 4.5kg LiDAR Topographic Survey
